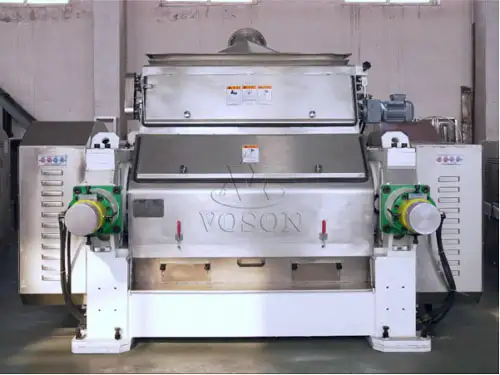

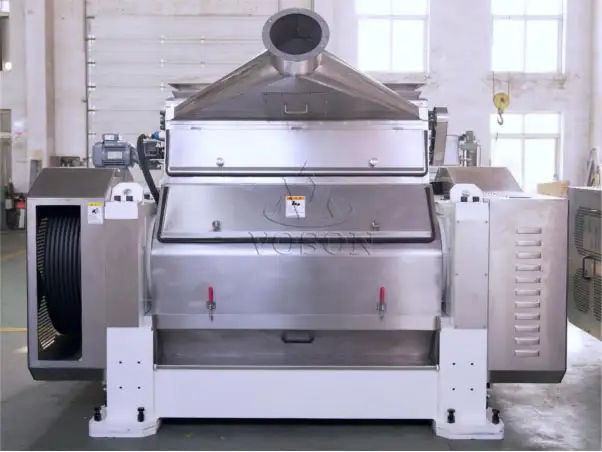

Corn Flaking Machine
- Capacity: 30-200TPH
- Production: Corn Flakes
The corn flaking machine operates by feeding steamed and conditioned corn kernels through two large, precision-ground rollers.
The Corn Flaking Machine is a core component in grain processing industry and ruminant feed production, designed for rolling steamed corn kernels into thin, uniform flakes. This flaker ensures improved digestibility, palatability, and nutritional availability for cattle and sheep. Our maize flaking equipment features a robust dual-roll structure, precise flake thickness control, and compatibility with large-scale production lines.
Ideal for use in steam flaking lines for cattle, dairy cow, and sheep feed mills, the VOSON flaking machines are engineered for efficiency, durability, and consistent output quality.
Working Principle of the Steam Corn Flaking Machine
The corn flaking machine operates by feeding steamed and conditioned corn kernels through two large, precision-ground rollers. The grain is compressed between the rolls to form uniform flakes. The use of steam conditioning before flaking softens the kernel, reduces resistance, and allows better flake formation. This process enhances starch gelatinization, increasing feed digestibility in ruminants.
The VOSON Series Corn Flaking Machine is commonly used in the following process flow:
- Corn Cleaning & Weighing
- Steam Conditioning (for 30–60 minutes)
- Corn Flaking via Flaker Rollers
- Flake Cooling & Drying
- Automatic Packing
Technical Specifications of Corn Flaking Machine
| Model | Capacity (t/day) | Main Motor Power (kW) | Flake Thickness (mm) | Machine Size (mm) |
|---|---|---|---|---|
| VS6060F | 30 – 40 | 15 × 2 | 1.2 – 2 | 1600 × 2100 × 1650 |
| VS6100F | 60 – 80 | 22 × 2 | 1.2 – 2 | 2000 × 2100 × 1650 |
| VS6125F | 100 – 120 | 30 × 2 | 1.2 – 2 | 2300 × 2100 × 1650 |
| VS6150F | 150 – 180 | 37 × 2 | 1.2 – 2 | 2600 × 2200 × 1750 |
Custom sizes and rollers available upon request.
Key Features of the Maize Flaking Machine
Uniform Flaking Performance: Dual-roll pressure ensures evenly processed corn flakes with adjustable thickness (1.2–2.0 mm).
Energy-Efficient Drive System: Equipped with high-efficiency motors, reducing power consumption.
Heavy-Duty Frame Design: Supports stable operation under high-capacity, continuous feed conditions.
Precise Control Mechanism: Includes adjustable feeding system and overload protection.
Low Maintenance Requirements: Components are wear-resistant and easy to replace.
Frequently Asked Questions (FAQ)
Q1: Can this machine process other grains besides corn?
A: It is optimized for corn, but also applicable to sorghum and barley after adjustment.
Q2: What is the flake thickness range?
A: Adjustable from 1.2 mm to 2.0 mm via roller gap settings.
Q3: How is steam conditioning handled?
A: We offer integrated or external steam conditioner options depending on your plant layout.
Q4: Is it compatible with full feed lines?
A: Yes. It can be integrated into new or existing automated feed lines.
