Enclosed stainless steel Z-type bucket elevator for gentle transfer of maize, corn grits, seeds and other granular products.

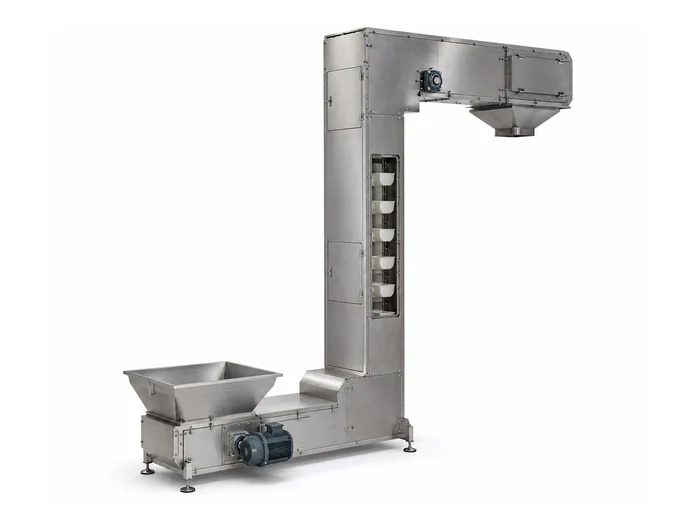

The Voson Stainless Steel Z-Type Bucket Elevator provides enclosed transfer of maize, corn grits, seeds, grains and other suitable granular products between equipment at different heights. Its conveying path combines a lower horizontal section, a vertical lifting section and an upper horizontal discharge section, allowing the machine to feed and discharge around existing production equipment.
Material is carried in a series of overlapping buckets connected to a chain or belt. The buckets move at a controlled speed through the enclosed casing, helping reduce spillage, product loss and external contamination. The inlet, lifting height, upper conveying length, outlet position and support structure are customized for the plant layout.
| Item | Available Configuration |
|---|---|
| Typical materials | Maize, corn grits, seeds, rice, grains and suitable granular products |
| Conveying capacity | Customized; confirmed from material data and plant requirements |
| Conveying route | Lower horizontal, vertical lifting and upper horizontal sections |
| Conveying element | Overlapping buckets connected to a belt or chain |
| Product-contact construction | Stainless steel; grade and scope confirmed before manufacture |
| Feeding and discharge | Hopper, inlet and outlet positions customized for the process |
| Plant integration | Grading, weighing, storage, mixing and packing equipment |
No universal capacity, lifting height or motor-power value applies to every Z-type elevator. Final selection depends on material bulk density, particle size, fragility, moisture, flowability, required throughput, conveying route, bucket volume, bucket spacing and operating speed.
Material enters the lower feeding section through a hopper or controlled inlet. As the buckets pass the feeding point, they receive the product and carry it horizontally toward the vertical casing. The bucket train then moves upward and continues through the upper horizontal section before discharging at the selected outlet.
The buckets remain closely spaced or overlapping along the conveying route. This arrangement helps retain granular material as the buckets move around the lower and upper corners. Discharge method and speed are selected according to the material and equipment configuration.
Stable feeding is essential. The upstream device should deliver material at a rate that matches the available bucket volume. Excessive feeding can cause buildup at the inlet, while insufficient feeding reduces effective capacity. Electrical interlocks can coordinate the elevator with upstream and downstream machines.
The lower horizontal section can include a feed hopper, controlled inlet and inspection access. Its length and feeding height can be adapted to the operator, upstream conveyor or processing machine.
The vertical casing raises the filled buckets to the required production level. Section height, inspection doors and supporting points are configured according to the plant layout and maintenance requirements.
The upper horizontal section carries the buckets to the outlet. Its length and discharge position can be customized to feed a bin, weighing system, mixer or packing machine.
Bucket material, volume, spacing and connection method influence capacity, residue and product protection. The belt or chain and drive system are selected according to the required load and operating duty.
Optional speed monitoring, overload protection, blockage monitoring, level sensors and electrical interlocks can help protect the elevator and coordinate the complete production line.
The stainless steel grade, surface finish and construction scope must be confirmed before production. Stainless steel product-contact parts do not automatically mean that the motor, gearbox, support frame and every external component are also stainless steel.
In maize processing, a Z-type bucket elevator is useful where granular material must be lifted while also moving horizontally to a specific inlet or outlet position. It can transfer corn grits between grading and storage sections, feed seeds or grains to weighing equipment, or connect a lower production machine with an elevated packing-system hopper.
Typical installation positions include:
Fine flour, sticky products, wet materials, very large particles or abrasive products require a separate assessment. Bucket design, feeding method, operating speed, discharge arrangement and cleaning access must suit the actual material.
Both machines lift bulk material, but their routes and preferred applications are different.
| Selection Point | Z-Type Bucket Elevator | Straight Vertical Bucket Elevator |
|---|---|---|
| Conveying route | Lower horizontal, vertical and upper horizontal sections | Straight vertical lifting |
| Layout flexibility | Can move material around equipment and reach an offset outlet | Best when inlet and outlet are vertically aligned |
| Product handling | Controlled buckets suit many granular or fragile products | Efficient continuous lifting of suitable bulk materials |
| Footprint | Requires room for horizontal sections | Uses less floor space |
| Feeding and discharge | Positions can be arranged along the Z-shaped route | Normally lower inlet and upper outlet |
| Main selection factors | Route, bucket design, product protection and discharge position | Capacity, lifting height, bucket and belt or chain design |
A Z-type elevator is normally selected when the inlet and outlet are horizontally offset or the material requires controlled bucket handling. A stainless steel bucket elevator with a straight vertical route is more suitable when the main goal is compact vertical lifting.
Because confirmed model, capacity, lifting height and motor-power data are not available for this product, the following table is a reference selection guide rather than a fixed specification sheet.
| Parameter | Reference Selection Basis |
|---|---|
| Model | Customized according to the material and conveying route |
| Capacity | Calculated from throughput, bulk density, bucket volume and filling condition |
| Motor power | Selected from route length, lifting height, material load and system resistance |
| Lifting height | Confirmed from inlet level, outlet level and plant layout |
| Horizontal sections | Lengths customized to feeding and discharge positions |
| Bucket specification | Selected from particle size, fragility, density and required capacity |
| Inlet and outlet | Quantity, direction and dimensions matched to connected equipment |
| Control options | Sensors, alarms, variable-frequency control and electrical interlocks |
All project values remain subject to confirmation after the material information and layout drawing have been reviewed. Voson selects the buckets, belt or chain, casing, corner sections, tensioning arrangement, gearbox and motor for the actual operating conditions.
To configure a suitable stainless steel Z-type bucket elevator, provide:
Voson can use this information to prepare the conveying route and select the buckets, belt or chain, casing, drive power, corner sections, inlet, outlet, inspection access and supporting frame. The elevator can be integrated into a new maize processing line or used to upgrade an existing granular-material handling section.
It can be configured for maize, corn grits, seeds, rice, grains and other suitable granular products. Material size, moisture, fragility and flowability must be reviewed before selection.
Z-type bucket elevators are generally better suited to granular products. Fine flour requires careful evaluation of dust sealing, residue, bucket filling and discharge. A stainless steel screw conveyor may be more suitable for some flour-handling positions.
The Z-shaped route allows material to enter at a lower horizontal section, rise vertically and discharge at an offset upper position. This is useful when equipment cannot be vertically aligned.
Yes. The lifting height, upper horizontal length, outlet direction and connection dimensions can be configured around the production layout.
The stainless steel scope is project-specific. Product-contact casing and buckets can be stainless steel, while the drive and support structure can be specified separately. Confirm the grade and scope in the quotation.
Provide the material, capacity, feeding height, lifting height, horizontal distances, inlet and outlet positions, stainless steel requirements and local power supply. A layout drawing will help Voson confirm the route.
Contact Voson with your material information and layout requirements to receive a suitable stainless steel Z-type bucket elevator configuration and quotation.
